PSOD “#GP Exception 13 in world ###:vmotionRecvH” During vMotion on ESX 9.1 (KB 455306)

If your ESX 9.1 host stopped with a purple screen that says PSOD “#GP Exception 13 in world ###:vmotionRecvH IP ###” during vMotion, you have hit a known bug. Broadcom documents it in KB 455306. An ESX 9.1 vMotion PSOD is not something you expect from a routine host evacuation, but it happens during vMotion and Cross-vCenter vMotion. It happens on hosts that use several 25 GbE or 100 GbE uplinks for vMotion. In this post I explain the theory behind vMotion stream helpers, walk through the purple screen, and show the workaround.

Short version: there is no fix yet. To prevent the crash, cap the vMotion stream helpers at 16 on every ESX 9.1 host:

esxcli system settings advanced set -o /Migrate/VMotionStreamHelpers -i 16

Symptoms of the ESX 9.1 vMotion PSOD

The host fails at random while a VM migrates to or from it. The purple screen shows this exception:

#GP Exception 13 in world ###:vmotionRecvH IP ###

According to the KB, two conditions together point to this issue:

• The host uses several physical NICs as uplinks for the vMotion network.
• Those NICs are 25 GbE or 100 GbE cards.

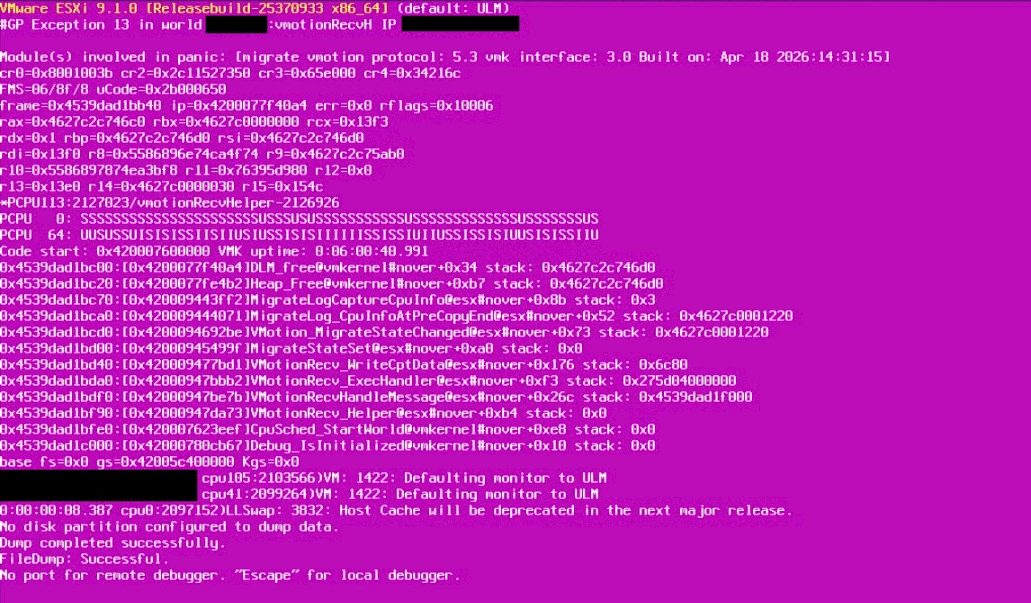

PSOD screen text: #GP Exception 13 in world vmotionRecvH

Here is the text from the screen above, so you can compare it with your own purple screen. I left out the memory addresses and register values because they differ on every host.

VMware ESXi 9.1.0 [Releasebuild-25370933 x86_64] (default: ULM)
#GP Exception 13 in world ###:vmotionRecvH IP ###
Module(s) involved in panic: [migrate vmotion protocol: 5.3 vmk interface: 3.0 Built on: Apr 18 2026]
*PCPU113:2127023/vmotionRecvHelper-2126926
DLM_free@vmkernel#nover+0x34
Heap_Free@vmkernel#nover+0xb7
MigrateLogCaptureCpuInfo@esx#nover+0x8b
MigrateLog_CpuInfoAtPreCopyEnd@esx#nover+0x52
VMotion_MigrateStateChanged@esx#nover+0x73
MigrateStateSet@esx#nover+0xa0
VMotionRecv_WriteCptData@esx#nover+0x176
VMotionRecv_ExecHandler@esx#nover+0xf3
VMotionRecvHandleMessage@esx#nover+0x26c
VMotionRecv_Helper@esx#nover+0xb4
CpuSched_StartWorld@vmkernel#nover+0xe8
No disk partition configured to dump data.
Dump completed successfully.
FileDump: Successful.

Is it the same PSOD? It most likely is if your screen shows all of the following:

• an ESX 9.1 build in the header (here 9.1.0, build 25370933);
• a crashed world named vmotionRecvH or vmotionRecvHelper;
• migrate vmotion protocol in the “Module(s) involved in panic” line;
• MigrateLog_CpuInfoAtPreCopyEnd and MigrateLogCaptureCpuInfo just below Heap_Free in the backtrace.

If the backtrace points to a different module, such as a NIC driver or NSX, you are looking at a different problem. After the host reboots, collect a support bundle with vm-support. To find the dump file the PSOD wrote, run esxcli system coredump file list. Then open a case with Broadcom and mention KB 455306.

Reading the #GP Exception 13 vmotionRecvH backtrace

The backtrace says more than the headline. Read from the bottom up, this is the path to the crash:

1. VMotionRecv_Helper, VMotionRecvHandleMessage and VMotionRecv_ExecHandler: a receive helper thread processes an incoming vMotion message.
2. VMotionRecv_WriteCptData: the message carries checkpoint data, so the migration is leaving pre-copy and moving to switchover.
3. MigrateStateSet and VMotion_MigrateStateChanged: the migration state changes.
4. MigrateLog_CpuInfoAtPreCopyEnd and MigrateLogCaptureCpuInfo: vMotion records CPU statistics for its helpers at the end of pre-copy.
5. Heap_Free and DLM_free: freeing that memory triggers the general protection fault (#GP Exception 13).

This matches the cause in the KB: a defect in the vMotion statistics tracking. My reading is that the per-helper statistics overflow their buffer and corrupt the heap. The damage only shows up when that memory is freed at the end of pre-copy. In this example, the crashed world is a receive helper (vmotionRecvHelper), so the receiving host went down. The KB says the PSOD can hit either side of a migration.

Theory: how vMotion uses streams and helpers

To understand the bug, you need two ideas from Niels Hagoort’s posts The vMotion Process Under the Hood and How to Tune vMotion for Lower Migration Times.

The vMotion phases

• Prepare: vCenter sends a migration specification to both hosts, and the destination reserves resources and creates a masked copy of the VM.
• Pre-copy: page tracers mark memory that the guest changes. vMotion then copies all memory, and in later iterations only the dirty pages. When the dirty rate is higher than the transfer rate, Stun During Page Send (SDPS) slows the vCPUs for microseconds so that the copy can converge.
• Switchover: the source VM is suspended, and its checkpoint data goes to the destination, which resumes the VM. This usually takes 100–200 ms.

The PSOD above happens exactly at the boundary between pre-copy and switchover.

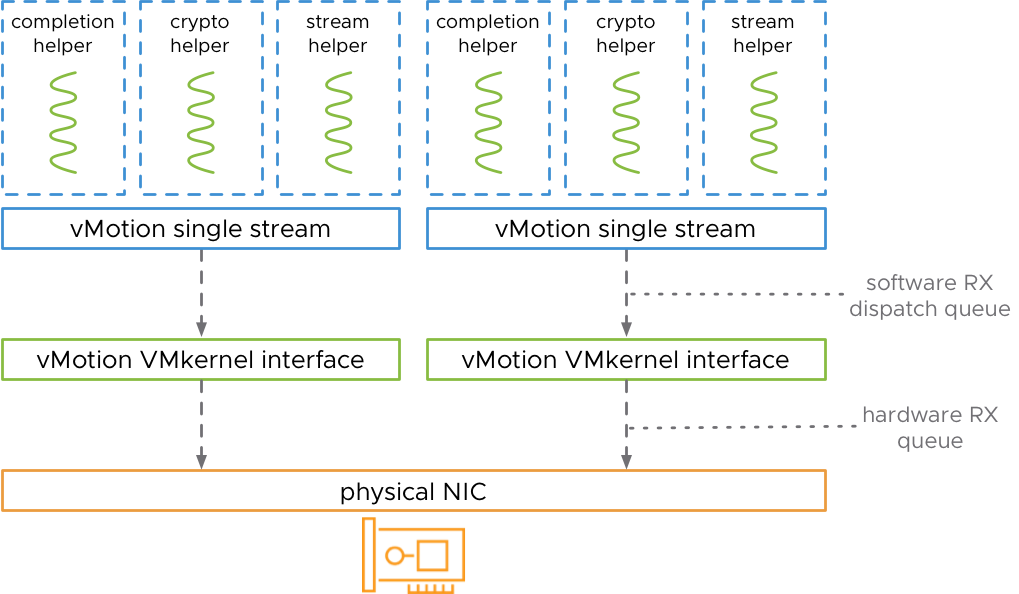

Streams, helpers and RX queues

Each vMotion-enabled VMkernel interface creates a vMotion stream. Each stream has three helpers, and a helper is a kernel thread that can use one CPU core:

• Completion helper: supports the vMotion process.
• Crypto helper: encrypts and decrypts the traffic for encrypted vMotion.
• Stream helper: puts the data on the wire.

In 2019, one stream moved roughly 15 Gbps, so a single stream could not fill a 25 GbE NIC. A 100 GbE NIC needed about six streams. You had two options to get more streams:

• more vMotion VMkernel interfaces, which also means more IP addresses;
• the advanced settings Migrate.VMotionStreamHelpers and Net.TcpipRxDispatchQueues, which add streams and RX queues to one interface.

The default value of Migrate.VMotionStreamHelpers is 0, which means ESX decides the number of helpers itself.

Why fast uplinks trigger the vmotionRecvH PSOD

ESX 9.1 now does this scaling automatically. According to KB 455306, it creates up to 7 stream helpers per physical vMotion uplink, depending on the number of uplinks and their bandwidth. The statistics code in 9.1 only handles 16 helpers, so a host with more than 16 can overflow the buffer.

vMotion uplinks (25/100 GbE)	Maximum stream helpers	Risk
1	7	Below the limit
2	14	Below the limit
3	21	Above 16: exposed
4	28	Above 16: exposed (the example in the KB)

The bug also explains why the crash looks random. ESX only creates that many helpers when the migration needs the bandwidth, for example during host evacuation or migration of large VMs.

Check if your hosts are exposed

On each ESX 9.1 host, find the vMotion VMkernel interfaces, check the speed of the physical NICs behind them, and read the current helper setting:

esxcli network ip interface tag get -i vmk1
esxcli network nic list
esxcli system settings advanced list -o /Migrate/VMotionStreamHelpers

A host is exposed to the vmotionRecvH PSOD if it has three or more 25/100 GbE uplinks active for vMotion and Int Value is 0 (the dynamic default). To find the vMotion VMkernel interfaces, check the tags of every vmk, or look at the VMkernel adapters in the vSphere Client.

Workaround 1 (recommended): cap stream helpers at 16

This option needs no change to the physical network. Connect to the host as root over SSH, set the cap, and check it:

esxcli system settings advanced set -o /Migrate/VMotionStreamHelpers -i 16
esxcli system settings advanced list -o /Migrate/VMotionStreamHelpers

For a whole cluster, PowerCLI is faster:

Get-Cluster 'Cluster01' | Get-VMHost |
  Get-AdvancedSetting -Name Migrate.VMotionStreamHelpers |
  Set-AdvancedSetting -Value 16 -Confirm:$false

Keep these points in mind:

• Set it on every host first. A migration involves two hosts, and either one can crash. So apply the cap everywhere before you start evacuations or rolling upgrades, which themselves use vMotion.
• Reboot or not: the KB does not mention a reboot. In 2019, however, the tuning post noted that these settings took effect after a reboot. If you want to see the runtime value, vsish -e get /config/Migrate/intOpts/VMotionStreamHelpers shows it.
• Leave the RX queues alone. The KB only changes Migrate.VMotionStreamHelpers. Do not change Net.TcpipRxDispatchQueues unless Broadcom support asks you to.
• Performance: 16 helpers still give vMotion plenty of parallel streams, so the cap mainly limits the largest 4×100 GbE setups.
• Undo later: when Broadcom ships the fix, set the value back to 0 to return to dynamic scaling.

Workaround 2: use only two vMotion uplinks

As an alternative, reduce the active uplinks for the vMotion port group to two. With at most 7 helpers per uplink, the host then stays at 14 helpers or fewer. However, this changes your network design and lowers vMotion bandwidth and redundancy, so the cap is usually the better choice. If you run multi-NIC vMotion, see my older note on multiple-NIC vMotion tuning with 2×40 Gbps.

Fix status

When KB 455306 was published on 22 September 2026, no permanent fix for the vmotionRecvH PSOD was available, and Broadcom said a fix would come in a future release. Subscribe to the KB to get notified, and check the release notes of the next ESX 9.1 patch before you remove the cap.

FAQ

Does the ESX 9.1 vMotion PSOD affect hosts with 10 GbE vMotion?

The KB lists 25 GbE and 100 GbE uplinks as the condition. With slower links, ESX creates fewer helpers, so the host stays under the limit of 16.

What does #GP Exception 13 mean on a PSOD?

Exception 13 is the x86 general protection fault: the CPU stopped the VMkernel because it accessed memory in a way that is not allowed. The text after “in world” tells you which kernel thread did it. Here it is vmotionRecvH, a vMotion receive helper.

Does encrypted vMotion matter?

The KB does not mention it. The trigger is the number of stream helpers, not encryption.

Is ESX 9.0 affected?

The KB only lists ESX 9.1.

Explorer note: both settings are in the ESXi Advanced and Kernel Settings Explorer with description, default, range, the esxcli and PowerCLI commands and the history across 42 releases. Migrate.VMotionStreamHelpers has kept the default 0 (dynamic) since ESXi 6.0 Update 3 and accepts 0 to 112, so the cap of 16 is well inside the range. Net.TcpipRxDispatchQueues moved from 1 (6.x) to 2 (7.0 and 8.0) and to 0 in ESX 9.0, where 0 means autotuning by PCPU count; the range is 0 to 8.
