Short answer: Zabbix monitors vSphere agentlessly through the vCenter (or ESXi) SDK. First enable VMware collectors on the Zabbix server with StartVMwareCollectors and restart it. Then create one host linked to the VMware or VMware FQDN template and set {$VMWARE.URL} to https://<vcenter>/sdk, plus the username and password macros. Low-level discovery then creates hosts for hypervisors and VMs automatically.

How Zabbix VMware monitoring works

Zabbix needs no agent on ESXi hosts. Dedicated vmware collector processes in the Zabbix server (or proxy) log in to the vSphere Web Services API, cache configuration and performance counters in shared memory, and serve that cache to vmware.* items. According to the Zabbix VMware monitoring manual, the server must be built with --with-libcurl --with-libxml2. Official Zabbix packages already include both.

Step 1: enable VMware collectors on the Zabbix server

By default no collectors run. Edit /etc/zabbix/zabbix_server.conf (or the proxy config if a proxy monitors vCenter):

StartVMwareCollectors=2
# optional tuning, see the zabbix_server.conf reference
# VMwareCacheSize=
# VMwareFrequency=
# VMwarePerfFrequency=
# VMwareTimeout=

systemctl restart zabbix-server

Zabbix recommends running more collectors than monitored VMware services, and no more than twice as many. With too few, slow configuration retrieval on large vCenters delays performance data. VMwareCacheSize holds the shared memory for VMware data, so size it to the number of hosts and VMs you monitor. Use Zabbix internal monitoring to see how full the cache is and how busy the collectors are.

Parameter	Meaning
StartVMwareCollectors	Number of pre-forked VMware collector processes
VMwareCacheSize	Shared memory for VMware data
VMwareFrequency	Seconds between configuration data gathering from one VMware service
VMwarePerfFrequency	Seconds between performance counter retrievals
VMwareTimeout	Maximum wait for a response from the VMware service

Step 2: prepare a vCenter service account

The Zabbix guide uses administrator@vsphere.local as an example. In production, use a dedicated SSO user with the Read-only role, propagated from the vCenter root object. Monitoring only reads inventory, events and counters. Zabbix does not document a minimum privilege set, so if some items stay unsupported, check permissions before anything else.

For datastore capacity metrics, the Zabbix docs require the vCenter advanced setting vpxd.stats.maxQueryMetrics to be at least 64.

Step 3: create the vCenter host and macros in Zabbix

1. Data collection > Hosts > Create host, for example VMware environment, host group VMware. No interface is needed.
2. Link the template VMware FQDN or VMware (see below).
3. On the Macros tab set the three macros, using a secret text type for the password.

{$VMWARE.URL}      = https://vcenter.example.local/sdk
{$VMWARE.USERNAME} = svc-zabbix@vsphere.local
{$VMWARE.PASSWORD} = ********

Discovery rules such as vmware.hv.discovery[{$VMWARE.URL}] then create hypervisor hosts (template VMware Hypervisor) and VM hosts (template VMware Guest) from host prototypes. Check the results in Monitoring > Hosts > Latest data.

VMware vs VMware FQDN template

The template documentation explains that the difference is naming. VMware names discovered VM hosts from vCenter data (UUID-based macros, VM names as shown in vCenter). VMware FQDN uses the guest FQDN. That requires VMware Tools and a unique, FQDN-compliant OS name in each VM. It also avoids duplicate hosts when the same VMs also run a Zabbix agent that auto-registers under its hostname. Do not link VMware Guest manually: it is meant only for discovery.

Troubleshooting Zabbix vCenter monitoring

• “No vmware collector processes started”: StartVMwareCollectors is 0 on the server or proxy that actually polls the host.
• Items “Not supported” on datastores: the performance counter is not enabled or collected in vCenter, or maxQueryMetrics is too low.
• Login errors after certificate or password changes: check the URL ends in /sdk and the service account has not expired. See vCenter password expiration fix.
• Deep debugging: raise the log level for vmware collectors only (debug level 5), as described in the Zabbix manual.

Further reading

• Original post: Monitoring VMware vSphere with Zabbix (vMattroman)
• Zabbix manual: Monitor VMware with Zabbix
• Zabbix manual: VMware monitoring
• Zabbix manual: zabbix_server.conf parameters

Short answer: Broadcom cannot recover a lost ESXi root password, only replace it. If the host is still connected to vCenter, reset root with a Host Profile, vSphere Configuration Profiles or PowerCLI (esxcli system account set). If it is joined to Active Directory, an “ESX Admins” member can reset it. A standalone host with no other admin access must be reinstalled with VMFS preserved. Editing the configuration store offline is an unsupported lab workaround.

Supported ways to reset the ESXi root password

Broadcom lists the options in KB 393496 (ESXi 7.0 and 8.0). Choose one based on what still has access to the host:

Method	Requirement	Support status
Host Profile	Host connected to vCenter; vSphere Enterprise Plus license	Supported (KB 323617)
vSphere Configuration Profiles	Clusters managed by configuration profiles instead of Host Profiles	Supported (KB 393496)
PowerCLI / esxcli via vCenter	Host connected to vCenter; on 8.x shell access for vpxuser	Supported (KB 376979)
AD account in “ESX Admins”	Host joined to AD; access to a domain controller	Supported (KB 390021)
Reinstall, preserve VMFS	Standalone host with no other admin path	Supported (KB 393496)
Offline edit of state.tgz / configstore	Physical access, Linux VM, nested ESXi	Unsupported, lab only

Reset root with a Host Profile (host managed by vCenter)

Here is a summary of KB 323617, which also covers ESX 9.x:

1. In Policies and Profiles > Host Profiles, extract a profile from a healthy host of the same version.
2. Edit the profile, clear all sections, search for root and set Fixed password configuration with the new password.
3. Attach the profile to the affected host, edit the host customization, then Remediate. No reboot is required, so you can clear the automatic reboot option.
4. Check compliance, then delete the temporary profile.

Reset the ESXi root password with PowerCLI

If Host Profiles are not licensed, KB 376979 runs esxcli system account set through vCenter. The host must not be Disconnected or Not Responding. On ESXi 8.x, shell access for the vpxuser account must be enabled, and the KB says the method fails if root is lost and that shell access is disabled.

Connect-VIServer vcenter.example.local
$creds = Get-Credential -UserName "root" -Message "Enter root as username and new password"
$esxiserver = Get-VMHost -Name esx01.example.local
$esxcli = Get-EsxCli -VMHost $esxiserver -V2
$userarg = $esxcli.system.account.set.CreateArgs()
$userarg.id = $creds.UserName
$userarg.password = $creds.GetNetworkCredential().Password
$userarg.passwordconfirmation = $creds.GetNetworkCredential().Password
$esxcli.system.account.set.invoke($userarg)   # returns true on success

Reset via Active Directory (“ESX Admins”)

For an AD-joined host, KB 390021 uses the default admin group. Create an AD group named exactly ESX Admins and add a user to it. Sign in to the VMware Host Client with that account, then edit root under Manage > Security & users > Users. Caveat: from ESXi 8.0 Update 3, Config.HostAgent.plugins.hostsvc.esxAdminsGroupAutoAdd defaults to false (KB 369707, the CVE-2024-37085 hardening). On those hosts, this only works if an AD group was already given admin rights on the host.

Standalone host: reinstall ESXi and keep VMFS

With no vCenter, AD or other admin account, the supported path in KB 393496 is a reinstall. Evacuate or power off the VMs. Reinstall the same ESXi version on the boot device and choose to preserve the VMFS datastore. Then restore the configuration if you have a backup, and re-register the VMs from the datastore. A configuration bundle only helps if you took it earlier. See how to back up and restore ESXi host configuration.

Unsupported: editing the ESXi configuration store offline

Older guides replace the password hash in /etc/shadow inside state.tgz from a Linux live CD. William Lam points out that this no longer works from ESXi 7.0 Update 1 onward, because host configuration moved into an encrypted configuration store. His workaround copies the host’s encrypted state from the boot device. It decrypts that state in a nested ESXi VM, edits the password hash in the configstore SQLite database, re-encrypts it and writes it back.

Treat this as lab only. It is not a Broadcom-documented procedure, and it is not in any Broadcom KB. It modifies the boot device directly, and a mistake can leave the host unbootable. On production hosts use one of the supported methods above, or open a support case.

Prevent the next lockout

• Store root passwords in a vault and rotate them on a schedule (VCF password management does this for managed hosts).
• Keep a second local admin, or an AD group, with the Administrator role.
• Back up host configuration after every change. Useful esxcli commands are in esxcli commands for ESXi 8.0.

Further reading

• Original post: Recovering ESXi 7.x & 8.x host after forgetting or losing root password (William Lam)
• Broadcom KB 393496: Methods to recover the ESXi host root password
• Broadcom KB 323617: Reset host root password with Host Profile
• Broadcom KB 376979: Reset root password of ESXi using PowerCLI

ESXi on ASUS NUC 14 Performance (Scorpion Canyon)

In addition to the ASUS NUC 14 Pro (which I recently reviewed), ASUS has also released the ASUS NUC 14 Performance (formally known as Scorpion Canyon) as part of their Intel 14th Generation (Meteor Lake) lineup. Compared to the ASUS NUC 14 Pro and Pro+, the ASUS NUC 14 Performance offers […]

---

Broadcom Social Media Advocacy

Updated Dashboard for VMware Community Homelabs…

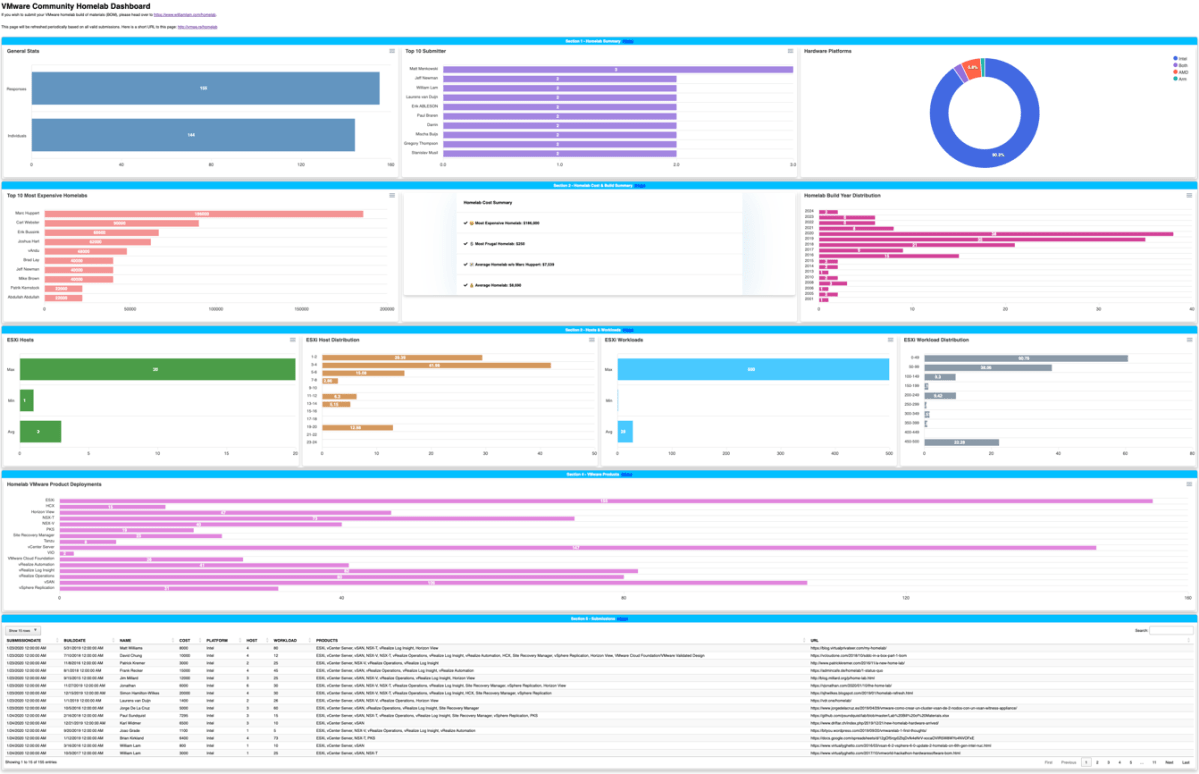

While working on some data analysis for an internal project, I was looking for a better way to summarize and provide some visualizations of the raw data for better consumption. I also wanted to automate this process, so that I could easily build reports or dashboards regardless of the […]

---

Broadcom Social Media Advocacy

Quick Tip – Retrieving vSAN File Share Network…

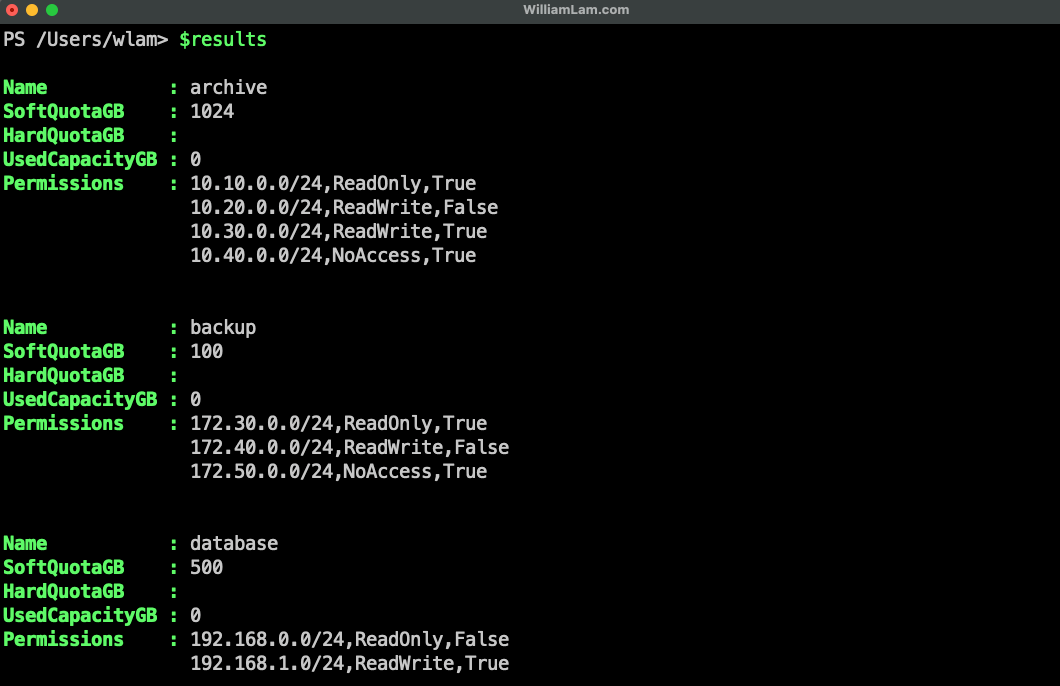

When creating a new vSAN File Share, which is powered by vSAN File Services, additional network access controls (no access, allow access from any IP or custom) can be configured. To view the configured network permissions, users must expand each file share to get the relevant information. For […]

---
